LORA RF GATEWAY (ISL058)



The ISL058 LoRa RF Gateway connects Invisible Systems’ range of LoRa devices to their cloud platform, Realtime-Online. It has an integrated LoRa RF transceiver capable of receiving wireless data from up to 10km away, internal memory for logging packet data, and an integrated 2G/3G modem to send stored data to Realtime-Online.

  • 2G or 3G cellular modem

  • Multi-network SIMs and cellular roaming capability

  • Integrated RF 868MHz LoRa transceiver (915MHz US & AUS versions

  • Internal 2Mb memory, with storage capacity of upto 1 year (15 minute data profile)

  • Small footprint

  • Wireless range upto 10km line-of-sight from Invisble Systems’ tranmsitters

  • Operates in conjunction with Realtime-Online cloud platform

  • Duplex bi-directional communications via GPRS

  • CE, FCC, IC, ETSI, RED, CB Scheme approved

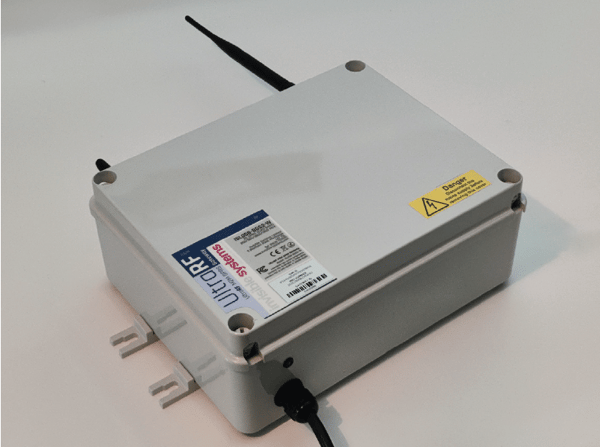

Gateway LoRa RG

TECHNICAL DATA

RF RADIO TRANSCEIVER

Network Topologies: Point-to-Point, Point-to-MultiPoint

Security/Encryption: 128 bit data encryption

Frequency Band: 868MHz UK (915MHz US & AUS)

RF Data Rate: Variable bit rate

RF Technology: Frequency Hopping Spread Spectrum (FHSS) (US & AUS ONLY)

Modulation: DSSS

Output Power: 100mW (20dBm)

Maximum Radiated Power (EIRP): 45.13mV/m measured at 3 meter

Range Line-of-sight (Outdoor): Up to 10km

Sensitivity: -132dBm

QOS Management: RSSI, LQI

Link Budget: 160dB maximum

Memory: 2Mb

ELECTRICAL/ENVIRONMENTAL

Supply Voltage: 240VAC

Current consumption: Peak 1.5A

Temperature (Operating): -20°C to +55°C

Temperature (Storage): -20°C to +55°C

Dimensions: 240mm x 190mm x 90mm

Weight: 1kg



2G VERSION

2G GSM Quad-Band: 850 / 900 / 1800 / 1900 MHz

2G Output Power: Class 4 (2W) for 850 / 900, Class 1 (1W) for 1800 / 1900

GPRS Class 10: DL: max. 85.6 kbps, UL: max. 42.8 kbps

3G VERSION



3G Dual-Band UMTS (WCDMA/FDD): EU: 900 and 2100 MHz, US: 850 and 1900 MHz

Dual-Band GSM: EU: 900 and 1800 MHz, US: 850 and 1900 MHz

3G Output Power: Class 4 (2W) for 850 / 900, Class 1 (1W) for 1800 / 1900

HSDPA Cat.8 / HSUPA Cat.6 Data Rates: DL: max. 7.2 Mbps, UL: max. 5.76 Mbps

EDGE Class 12 Data Rates: DL: max. 237 kbps, UL: max. 237 kbps

GPRS Class 12 Data Rates: DL: max. 85.6 kbps, UL: max. 85.6 kbps

CERTIFICATIONS



FCC ID: ZWZ-ISL067, QIPBGS2

Industry Canada ID: 12053A-ISL067

CE: ETSI EN 300 220-2 V2.4.1 (2012-05)

Safety: TRAC TS080000 EN60950-1

ROHS: YES
